CUBING

We are specialized in the study and manufacture of cubing (MAPIEX or geometric gauge), this product is a very precise system of references made in machined aluminium allowing to analyze serial parts, compared to a theoretical system of references.

The Cubing is a great added value product that needs a particular know-how and that requires strong liabilities and very specific fixtures in design, NC milling and checking. The Cubing is a referenced fixture used to valid all the interior and exterior serial parts of the frame of their theoretical environment. This referential fixture is generally manufactured in aluminium, NC milled and fitted on the welded frame basis, representing the scale 1 of the product.

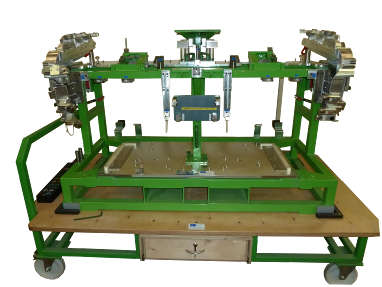

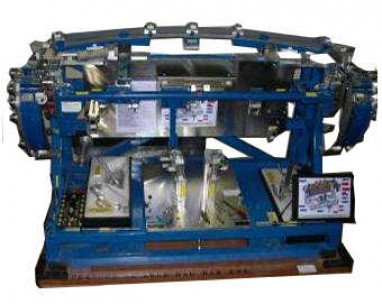

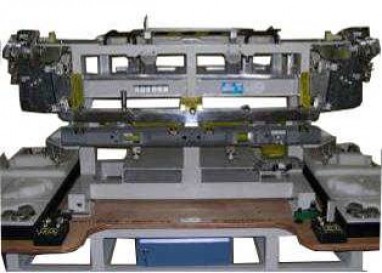

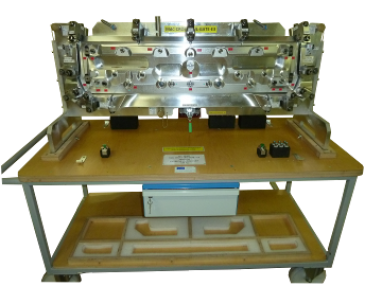

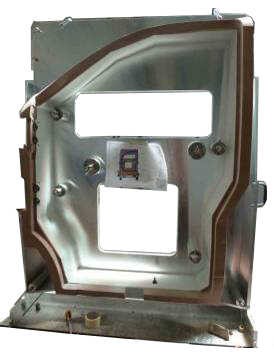

CHECKING FIXTURES / JIGS

The checking fixture is an important part of our activity, we design and manufacture serial and prototype checking fixtures for interior plastic parts of a vehicle, as dashboards, consoles and door panels, but also used for exterior plastic parts vehicles such as bumpers, trims, strip holders, calender… We design and manufacture some assembly fixtures of metal parts or gluing fixtures of composite-made-parts.

Fixture due to adjust geometrically a sliding door

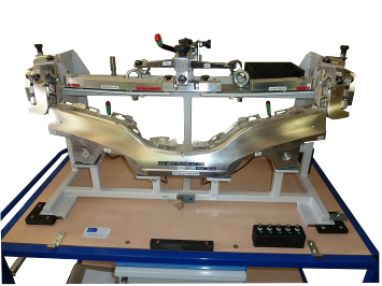

CF front grille

MDC rear cross tailgate

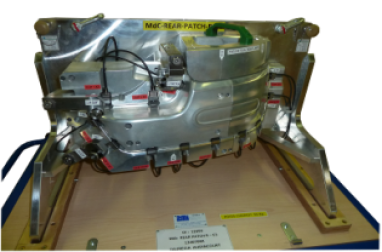

MDC rear patch right

MDC support structure partalone LHD / RHD

CF front grille

CF dashboard

CF rear bumper

PLUGS

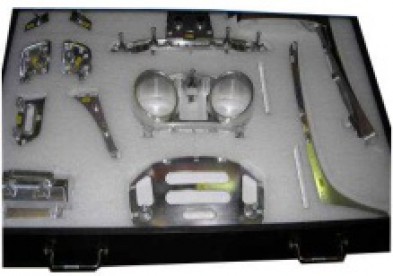

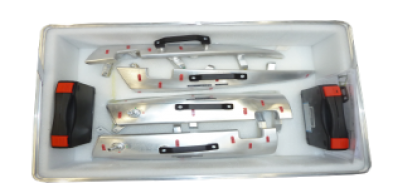

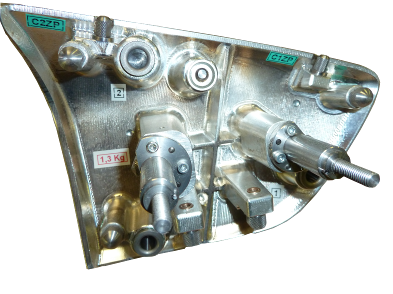

Aluminium plugs

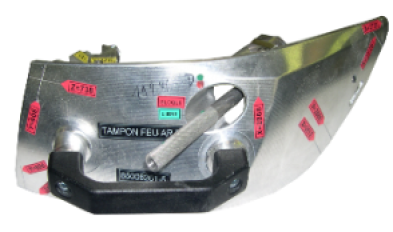

Plug rear headlamp

Plug higher corner

Plug rear headlamp

Central volume for front grille

DISPLAY FIXTURES

3D display fixture body side with moving on air cushion

Fixture for front hood

3D display fixture for trunk door 3D display

3D display fixture + 1D front fender

VALIDATION FIXTURES WITH ADJUSING GAPS

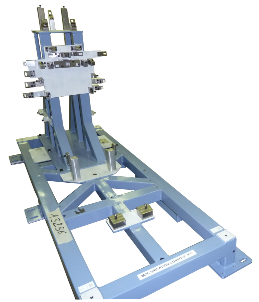

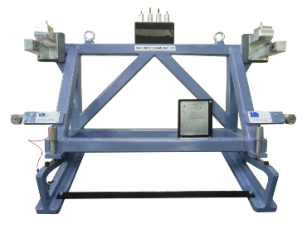

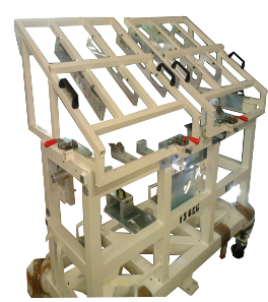

METAL FIXTURES

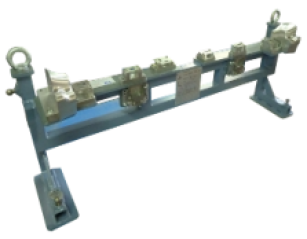

ASSEMBLY FIXTURE

DEMONSTRATORS

SUPPORTS

Support rear skirt

Support for console

Testing support fat

Vibrating support dashboard

ADHESIVE FIXTURES

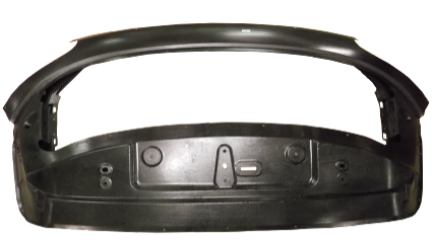

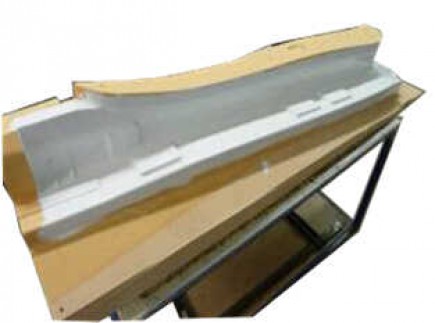

LAMINATED PARTS

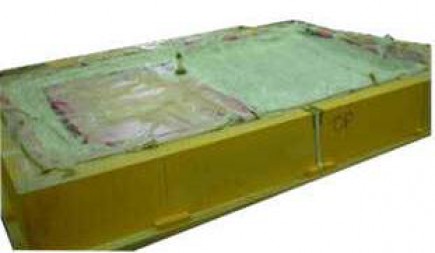

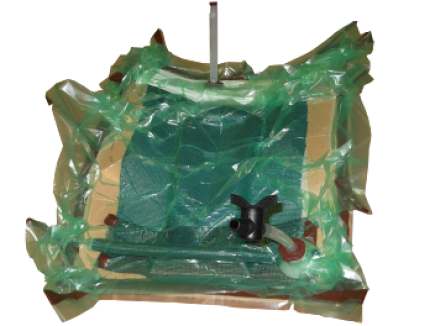

Step vacuum laminating

Step laminating by vacuum infusion

Step gel coat and draping

Assy front door

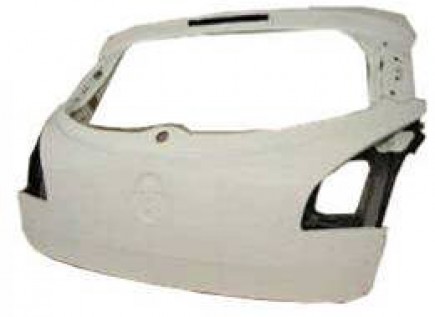

Assy trunk door

Lining trunk door

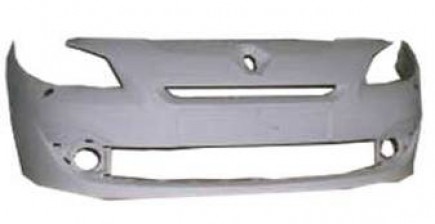

Front bumper

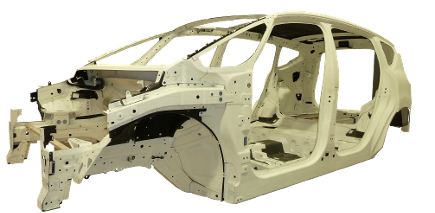

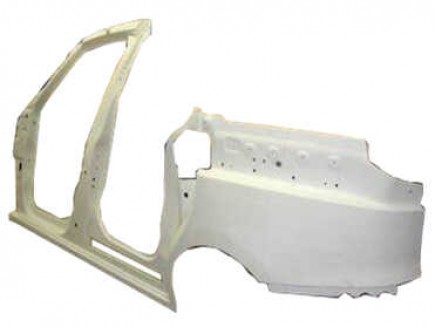

Laminated body side

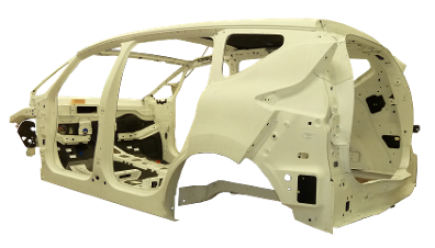

Carbon laminated parts (whole bodyside)

Carbon laminated parts (whole bodyside)

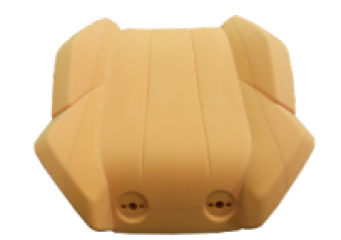

VALIDATION STYLING PARTS

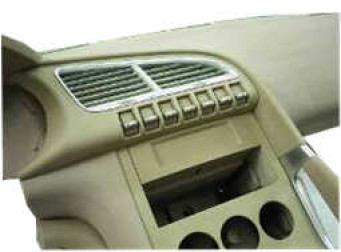

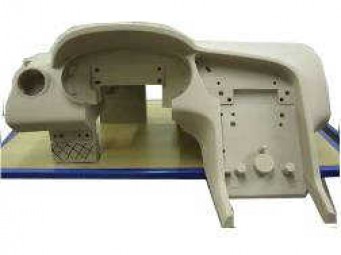

Dashboard

Dashboard

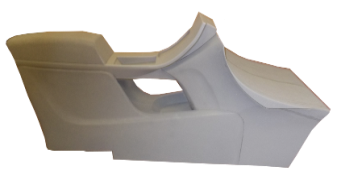

Central console

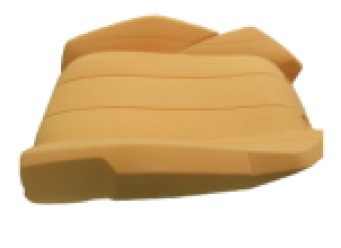

Seat

Seat back

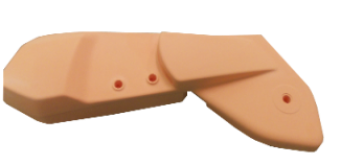

Trim parts

Trim parts

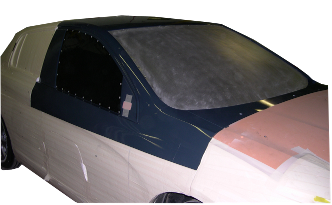

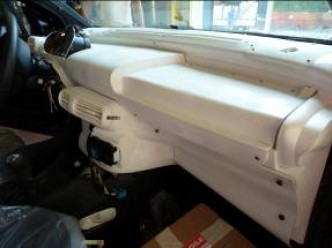

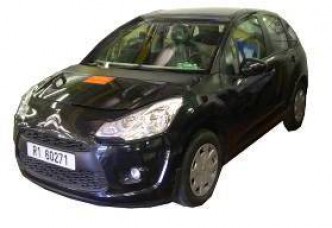

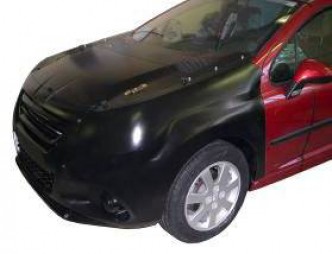

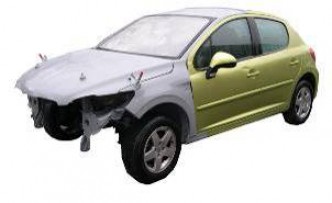

EQUIPMENT FOR "MULETS"

SERVICES ON CUSTOMER SITES

• 3D checking with LEICA AT401 LASER TRACKER
• Design with CATIA
• Digitization
• Installation and adjustment
• Expertise and advising in control process

REFERENCES
